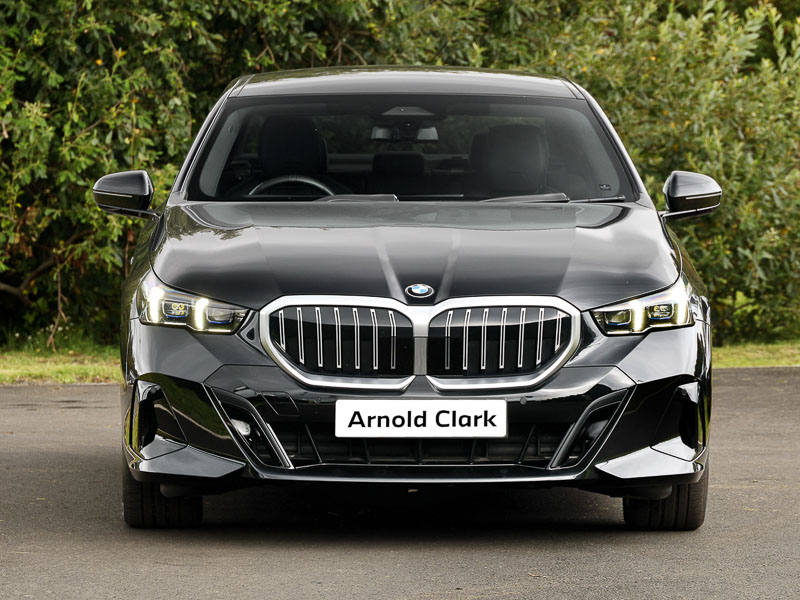

Brand New BMW 5 Series 530e M Sport 5dr Auto

Available at BMW branches

From £61,905

£4999 Deposit

£649 Per month

Finance your car with PCP

Ask about stock availability

Our advisors will guide you through the process
Range of specifications to choose from
We'll value your part exchange

Enquire now

SummaryStandard specificationTechnical specification

Vehicle summary

Mileage	Zero miles
Fuel	Petrol Plug-in Hybrid
Gears	Automatic
Engine	1998 cc
WLTP CO2 emissions	16 g/km
Doors	5
Seats	5
Body type	Estate
Colour	Choice of colours

Something missing?

Add more to your vehicle summary

Featured specification

BMW Live Cockpit Plus Nav-12.3" instrument&14.9" control Widescreen curved display/Intelligent Voice Assist/iDrive touch/Access 3rd party app/4G LTE
Automatic tailgate operation
BMW ConnectedDrive online services
BMW Iconic sounds electric
BMW Teleservices
Front collision warning with brake intervention
Lane departure warning with active return

Standard specification

Driver Convenience

Automatic tailgate operation	BMW ConnectedDrive online services
BMW Iconic sounds electric	BMW legal emergency call
BMW Teleservices	Brake pad wear indicator
Cruise control with brake assist	Driving Assistant Plus Preparation
Front collision warning with brake intervention	Lane departure warning with active return
Left turn warning with brake function	Multifunctional instrument panel
Oil sensor for level and grade	On board computer inc. average speed, fuel consumption, liquid crystal Info display, journey computer, outside temperature display, personal profile
On-board diagnosis - OBD	PAS
Personal e-SIM	Powered by Operating System 7.0
Run flat indicator	Service interval indicator
Speed limit Info with manual speed limit assist	Stop/start button

Engine/Drivetrain/Suspension

8 speed automatic steptronic transmission with gearshift paddles

AC charging cable professional (mode 3) for public charging

Entertainment

DAB tuner

Exterior Features

Acoustic glazing	Adaptive LED Headlights
Automatic cornering lights	Automatic windscreen wipers and automatic headlight
BMW selective beam	Body colour door handles
Body coloured bumpers	Dynamic brake lights with LED technology
Electric adjustable door mirrors	Electric front and rear windows with fingertip open/close + anti-trap facility and comfort closing function
Follow me home headlight function	Headlight elements in blue
Heated windscreen washer jets	LED daytime running lights
LED third brake light	Light colour close to that of ordinary daylight
Optimum, homogeneous illumination of the road	Rear side wing doors
Rear wiper

Interior Features

2 zone automatic air conditioning	3 seat bench in 2nd row
3 spoke leather M steering wheel in BMW M specific design with M badge	Armrest - front and rear integrated door trim, centre console includes storage compartment, rear centre includes 2 cupholders
Child seat ISOFIX attachment with rear outer seats includes top tether	Coat hook on upper B-pillar panel
Electric adjustable steering column	Electrically adjustable lumbar support for driver and front passenger
Heated driver and front passenger seats	High-gloss black door switch cluster, power window switch and tailgate button on first and second row seat
M Anthracite headlining	M Sport pedal covers in stainless steel
Rear headrests	Single front passenger seat
Through loading system with 40/20/40 rear seat backrest split	Velour floormats
Wireless charging tray

Packs

Ambient lighting pack - 5 Series/I5	Connected package professional - 5 Series/I5
Driving assistance pack - 5 Series/I5	Expanded exterior mirror package - 5 series/I5
M high gloss shadow line pack - 5 Series/ I5	M Sport exterior styling pack - 5 Series/I5

Passive Safety

3 rear three point seatbelts	Active protection
Airbag deployment is controlled with respect to the intensity and scope	Anti-lock braking system (ABS)
Brake assist	Brake energy regeneration
Cornering brake control (CBC)	Crash sensor activating central locking release, hazard warning lights, fuel cut off and interior lighting
Driver and front passenger airbags	Driver central airbag
Driver/front passenger side airbags	DSC - Dynamic Stability Control
Dynamic brake control	Dynamic Traction Control - DTC
Electromechanical parking brake with automatic drive away release and auto hold function	Electronic brake force distribution
Engine drag torque control	Front and rear brake discs with interior ventilation
Front and rear curtain airbags	Front head restraints with anti-whiplash
Head airbags for first and second row seats	Hill start assist
Locking of doors after driving off	M Sport brake in blue high gloss painted brake callipers with monochrome logo on front calliper
Mechanical child proof lock on rear doors	PC iBrake PostCrash approach control warning with light braking function
Side impact protection	Trailer stability control
Two tone horn	Tyre pressure monitoring system
Warning triangle and first aid kit

Security

Alarm system

Locking wheel bolts including wheel bolt adapter

Wheels

Tyre repair kit

The vehicle information above was correct at time of manufacture. Please speak to the dealership for full current specification.

Technical specification

Electric Vehicle Data

Battery Capacity in kWh	22.1	Battery Charging Scenario 1 - Charge Time (Mins)	705
Battery Charging Scenario 1 - Percentage Change	0-100	Battery Charging Scenario 1 - Power Supply - kW	2.3
Battery Charging Scenario 2 - Charge Time (Mins)	195	Battery Charging Scenario 2 - Percentage Change	0-100
Battery Charging Scenario 2 - Power Supply - kW	7.4	Battery Charging Scenario 3 - Charge Time (Mins)	135
Battery Charging Scenario 3 - Percentage Change	0-100	Battery Charging Scenario 3 - Power Supply - kW	11
Battery Type	Lithium-ion	Charging Port Location	Left Side Front
Coupler/Connector Type	Type 2	Maximum Charging Rate - kW	11
Standard manufacturers Battery warranty - Mileage	100000	Standard manufacturers Battery warranty - Years	8
Usable Battery Capacity	19.4	WLTP - AER (km) - City	104
WLTP - AER (km) - Comb	95	WLTP - AER (miles) - City	64.6
WLTP - AER (miles) - Comb	59	WLTP - EC (kWh/100km) - City	19.4
WLTP - EC (kWh/100km) - Comb	20.7	WLTP - EC (kWh/100km) - Extra High	24.9
WLTP - EC (kWh/100km) - High	18.8	WLTP - EC (kWh/100km) - Low	20.7
WLTP - EC (kWh/100km) - Medium	18.3	WLTP - EC (miles/kWh) - City	3.2
WLTP - EC (miles/kWh) - Comb	3	WLTP - EC (miles/kWh) - Extra High	2.5
WLTP - EC (miles/kWh) - High	3.3	WLTP - EC (miles/kWh) - Low	3
WLTP - EC (miles/kWh) - Medium	3.4	WLTP - EC AC Ch Dep (kWh/100km) - Comb	23
WLTP - EC AC Ch Dep (miles/kWh) - Comb	2.7	WLTP - EC AC Weighted (kWh/100km) - Comb	20.7
WLTP - EC AC Weighted (kWh/100km) - Comb - TEH	22.4	WLTP - EC AC Weighted (kWh/100km) - Comb - TEL	20.7
WLTP - EC AC Weighted (miles/kWh) - Comb	3	WLTP - EC AC Weighted (miles/kWh) - Comb - TEH	2.8
WLTP - EC AC Weighted (miles/kWh) - Comb - TEL	3	WLTP - Equivalent AER (km) - City	104
WLTP - Equivalent AER (km) - Comb	96	WLTP - Equivalent AER (km) - Comb - TEH	88
WLTP - Equivalent AER (km) - Comb - TEL	97	WLTP - Equivalent AER (km) - Extra High	81
WLTP - Equivalent AER (km) - High	107	WLTP - Equivalent AER (km) - Low	97
WLTP - Equivalent AER (km) - Medium	108	WLTP - Equivalent AER (miles) - City	64.6
WLTP - Equivalent AER (miles) - Comb	59.7	WLTP - Equivalent AER (miles) - Comb - TEH	54.7
WLTP - Equivalent AER (miles) - Comb - TEL	60.3	WLTP - Equivalent AER (miles) - Extra High	50.3
WLTP - Equivalent AER (miles) - High	66.5	WLTP - Equivalent AER (miles) - Low	60.3
WLTP - Equivalent AER (miles) - Medium	67.1

Emissions - ICE

CO	0.18	HC	0.007
NOx	0.005	Particles	0.0001
Standard Euro Emissions	EURO 6

Emissions - PHEV

WLTP - CO2 Ch Sus (g/km) - Comb	160	WLTP - CO2 Ch Sus (g/km) - Extra High	161
WLTP - CO2 Ch Sus (g/km) - High	139	WLTP - CO2 Ch Sus (g/km) - Low	208
WLTP - CO2 Ch Sus (g/km) - Medium	159	WLTP - CO2 Charge Depleting (g/km) - Comb	5
WLTP - CO2 Weighted (g/km) - Comb	17	WLTP - CO2 Weighted (g/km) - Comb - TEH	20
WLTP - CO2 Weighted (g/km) - Comb - TEL	16

Engine and Drive Train

Camshaft	DOHC	Catalytic Convertor	True
CC	1998	Compression Ratio	11.6:1
Cylinder Layout	IN-LINE	Cylinders	4
Cylinders - Bore (mm)	82	Cylinders - Stroke (mm)	94.6
Engine Code	XB1141M2	Engine Layout	NORTH SOUTH
Fuel Delivery	TURBO INJECTION	Gears	8 SPEED
Number of Valves	16	Transmission	SEMI-AUTO

Fuel Consumption - PHEV

WLTP - FC Ch Dep (l/100km) - Comb	0.1	WLTP - FC Ch Dep (mpg) - Comb	2824.8
WLTP - FC Ch Sus (l/100km) - Comb	7.1	WLTP - FC Ch Sus (l/100km) - Extra High	7.1
WLTP - FC Ch Sus (l/100km) - High	6.1	WLTP - FC Ch Sus (l/100km) - Low	9.2
WLTP - FC Ch Sus (l/100km) - Medium	7	WLTP - FC Ch Sus (mpg) - Comb	39.8
WLTP - FC Ch Sus (mpg) - Extra High	39.8	WLTP - FC Ch Sus (mpg) - High	46.3
WLTP - FC Ch Sus (mpg) - Low	30.7	WLTP - FC Ch Sus (mpg) - Medium	40.4
WLTP - FC Weighted (l/100km) - Comb	0.7	WLTP - FC Weighted (l/100km) - Comb - TEH	0.9
WLTP - FC Weighted (l/100km) - Comb - TEL	0.7	WLTP - FC Weighted (mpg) - Comb	403.5
WLTP - FC Weighted (mpg) - Comb - TEH	313.9	WLTP - FC Weighted (mpg) - Comb - TEL	403.5

General

Alternative Fuel Qualifying	True	Badge Engine CC	2
Badge Power	299	Coin Description	e
Coin Series	M Sport	Generation Mark	8
Insurance Group 1 - 50 Effective January 07	40E	Standard manufacturers warranty - Mileage	999999
Standard manufacturers warranty - Years	3	Vehicle Homologation Class	M1

Performance

0 to 62 mph (secs)	6.4	Engine Power - BHP	299
Engine Power - KW	220	Engine Power - PS	True
Engine Power - RPM	5000	Engine Torque - LBS.FT	332
Engine Torque - MKG	45.9	Engine Torque - NM	450
Engine Torque - RPM	1500	Top Speed	137

Test Cycles

Emissions Test Cycle	WLTP	RDE Certification Level	RDE 2

Tyres

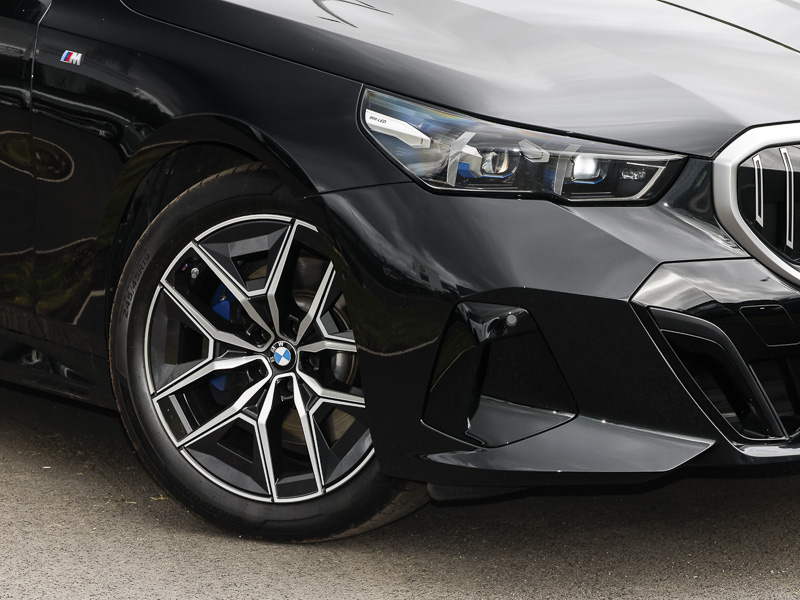

Alloys?	True	Tyre Size Front	245/45 R19
Tyre Size Rear	275/40 R19	Tyre Size Spare	TYRE REPAIR KIT
Wheel Style	DOUBLE SPOKE STYLE 935 M	Wheel Type	19" ALLOY

Vehicle Dimensions

Height	1515	Length	5060
Wheelbase	2995	Width	1900
Width (including mirrors)	2156

Weight and Capacities

Fuel Tank Capacity (Litres)	60	Gross Vehicle Weight	2740
Luggage Capacity (Seats Down)	1700	Luggage Capacity (Seats Up)	570
Max. Loading Weight	675	Max. Roof Load	100
Max. Towing Weight - Braked	1800	Max. Towing Weight - Unbraked	750
Minimum Kerbweight	2065	No. of Seats	5
Turning Circle - Kerb to Kerb	11.7

The vehicle information above was correct at time of manufacture. Please speak to the dealership for full current specification.

Personal contract purchase (PCP)

This is an example, we’ll always discuss your options in detail before you choose.

47 monthly payments of	£649
Deposit	£4999
Arnold Clark deposit	£9499.55
Total amount payable	£70,408.06
Fixed interest rate	3%
Representative APR	5.9%
Cash price	£61,905
Credit amount	£47,406.45
Contract mileage	32,000
Excess mileage charge	16.69p per mile
Optional final payment	£25,406.51
Term (months)	48
